Product overview:

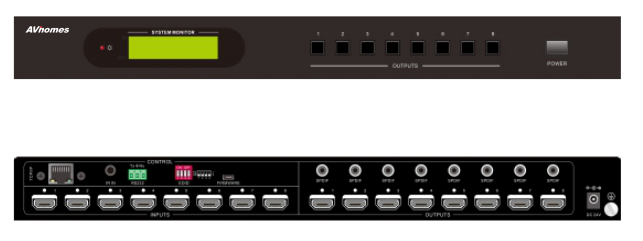

Mhd88-4k is a 4K HDMI matrix switcher that is input by 8-channel HDMI and output by 8-channel HDMI

To form an 8x8 matrix switcher. Each HDMI output has one digital coaxial audio output. the

HDMI standard, compatible with HDCP, support 4Kx2K, 1080P 3D resolution. Intelligent EDID management, built-in 10 kinds of EDID data. The device control mode is flexible and diverse, including infrared control, serial port control, net port control, panel button control, compatible control and more convenient to use.

Functional features:

1. Hd resolution: 4kx2k@60hz, 1080P 3D, 2560 * 1080; .

2. Input supports HDMI1.4 standard, downward compatible with HDMI 1.3, compatible with HDCP 2.2 standard, output supports HDMI1.4 standard, compatible with HDCP1.4 standard.

3. Two forms of EDID management: software management (instruction implementation) and hardware management (dial code switch implementation).

4. Built-in 10 kinds of EDID data.

5. Input HDCP to follow, and output supports HDCP management: instruction control.

6. Support scene saving function (instruction control).

7. USB firmware is updated online.

8. Various control modes: front panel button, IR infrared, RS232 serial port, TCP/IP network port.

9. Power off memory function, avoiding repetitive Settings.

Specifications:

Product model                                           MHD88-4 k

The input                                                    8-way HDMI

The input port                                            HDMI interface, Type A19 pin head

Audio input                                                HDMI embedded audio

standard                                                     Complies with HDMI1.4 standard and is compatible with HDCP2.2

The output                                                  8 channel HDMI, 4 channel SDPIF digital audio

Output connector                                       Type A19 pin head RCA, digital coaxial audio seat

Audio output                                              DMI embedded audio, SPDIF digital coaxial audio

standard                                                     HDMI1.4 standard, compatible with HDCP1.4

Power supply:                                             DC 12 v 2 a

Power consumption (W) :                           Full: 13.3; Standby: 4.4

Box size (mm)                                             436 x 235 x 44 (length x width x height, without earring)

Audio formats                                             HDMI embedded audio and SPDIF coaxial audio support Dolby Digital,

                                                                   DTS, DTS-HD format

Support resolution                                      Supports up to 4Kx2K and 1080P 3D

So the agreement                                       TCP/IP protocol compliance

Serial communication protocol                  Baud rate: 9600, data bit: 8, stop bit: 1, check bit: none
